OSD – BIOS upgrade during OS Deployment in MDT/ConfigMgr (v3)

Posted by Mikael Nystrom on July 20, 2016

This is the third version of the script solution; it is very simple. You detect make/model in any way you would like to, create a rule based on BIOS version, if the rule match, nothing happens, otherwise it runs any command you want. That said, you could use this for other task as well. Most common question is “does it work with any Make/Model”`No, there are some vendors that does not provide the ability to run a BIOS upgrade silently without reboot without control, that is, the darn thing reboots immediately and that usually breaks the Task Sequence. I have one thing for those vendors to say “Shame on you!”

here are older posts on the subject

https://deploymentbunny.com/2011/05/20/step-by-step-upgrading-bios-during-litetouch-deployment-for-dell-hewlett-packard-and-lenovo/

https://deploymentbunny.com/2013/12/16/step-by-step-upgrading-bios-during-litetouchzerotouch-deployment-for-dell-hewlett-packard-and-lenovo-v2/

Detect the Model

The detection in the script is actually whatever you want, it is just a “If-then”  here are two sample lines detection that you will find in the script

if($((Get-WmiObject Win32_ComputerSystem).model) -eq 'HP EliteBook 8560w'){}
if($ModelAlias -eq 'HP EliteBook 8460p'){}

Use the detection method for each model you like, very simple

Detect the BIOS version

This is also not that hard, here are 2 sample lines from the script

if($((Get-WmiObject Win32_Bios).SMBIOSBIOSVersion) -ne '68SCF Ver. F.63'){}
if($((Get-WmiObject Win32_Bios).SMBIOSBIOSVersion) -ne '786G1 v01.27'){}

Store the upgrade files

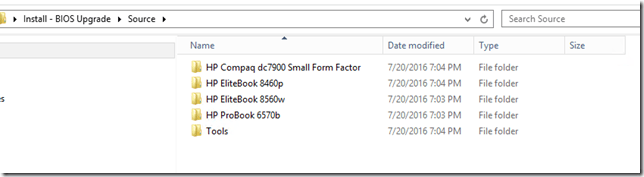

The upgrade files are stored with the model name, like this:


The Silent Command

You also need to figure out the command, not really hard, download the bios upgrade, read how to run it from a command line, update the script and you are done, here is a sample of one of those sections.

$Exe = 'hpqflash.exe'
$Location = "$SCRIPTDIR\Source\HP EliteBook 8460p"
$Executable = $Location + "\" + $exe
Set-Location -Path $Location
Invoke-Exe -Executable "$Executable" -Arguments "/s /f 68SCE.CAB" –Verbose

Run the script

in MDT you can import the folder with the script as a application and set this as the command line:

PowerShell.exe -ExecutionPolicy Bypass -File Install-BIOSUpgrade.ps1

In ConfigMgr you can import this as a Package and then run the command line the same way

It is also possible to run this outside of a task sequence if you like, it works as a stand alone script, however, you cannot use the integration with MDT of course.

If you want it is possible to add a custom property in customsettings.ini, something like “NeedReboot”, then you can add the following to happen if the BIOS has been upgraded

$tsenv.Value(“NeedReboot”) = “YES”

If you then in the step after this, set a condition on a reboot step, well then it will reboot when needed, otherwise not, you can read about that in one of my old postings here

https://deploymentbunny.com/2013/12/16/step-by-step-upgrading-bios-during-litetouchzerotouch-deployment-for-dell-hewlett-packard-and-lenovo-v2/

The result

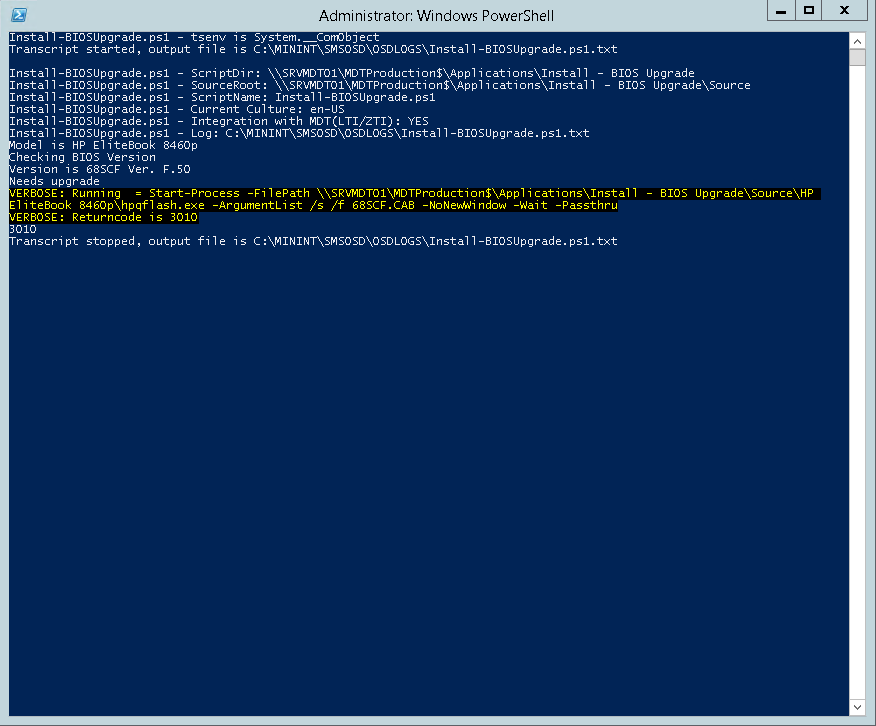

BiosUpgradeResult
It was needed.

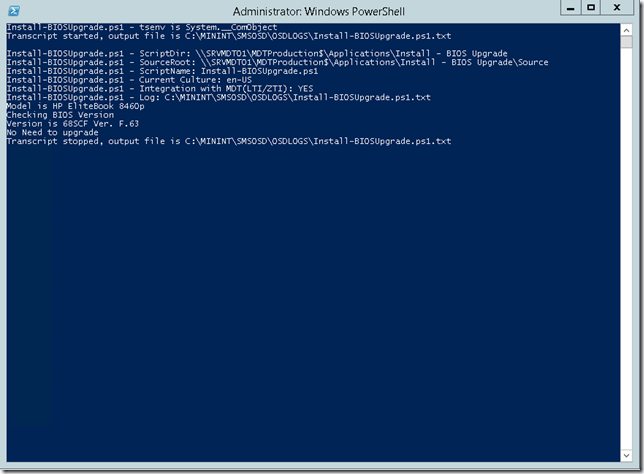

BiosUpgradeResultNotNeeded
It was not needed.

The Script


Function Import-SMSTSENV{
    try
    {
        $tsenv = New-Object -COMObject Microsoft.SMS.TSEnvironment
        Write-Output "$ScriptName - tsenv is $tsenv "
        $MDTIntegration = "YES"

        #$tsenv.GetVariables() | % { Write-Output "$ScriptName - $_ = $($tsenv.Value($_))" }
    }
    catch
    {
        Write-Output "$ScriptName - Unable to load Microsoft.SMS.TSEnvironment"
        Write-Output "$ScriptName - Running in standalonemode"
        $MDTIntegration = "NO"
    }
    Finally
    {
    if ($MDTIntegration -eq "YES"){
        $Logpath = $tsenv.Value("LogPath")
        $LogFile = $Logpath + "\" + "$ScriptName.log"

    }
    Else{
        $Logpath = $env:TEMP
        $LogFile = $Logpath + "\" + "$ScriptName.log"
    }
    }
}
Function Start-Logging{
    start-transcript -path $LogFile -Force
}
Function Stop-Logging{
    Stop-Transcript
}
Function Invoke-Exe{
    [CmdletBinding(SupportsShouldProcess=$true)]

    param(
        [parameter(mandatory=$true,position=0)]
        [ValidateNotNullOrEmpty()]
        [string]
        $Executable,

        [parameter(mandatory=$false,position=1)]
        [string]
        $Arguments
    )

    if($Arguments -eq "")
    {
        Write-Verbose "Running $ReturnFromEXE = Start-Process -FilePath $Executable -ArgumentList $Arguments -NoNewWindow -Wait -Passthru"
        $ReturnFromEXE = Start-Process -FilePath $Executable -NoNewWindow -Wait -Passthru
    }else{
        Write-Verbose "Running $ReturnFromEXE = Start-Process -FilePath $Executable -ArgumentList $Arguments -NoNewWindow -Wait -Passthru"
        $ReturnFromEXE = Start-Process -FilePath $Executable -ArgumentList $Arguments -NoNewWindow -Wait -Passthru
    }
    Write-Verbose "Returncode is $($ReturnFromEXE.ExitCode)"
    Return $ReturnFromEXE.ExitCode
}

# Set vars
$SCRIPTDIR = split-path -parent $MyInvocation.MyCommand.Path
$SCRIPTNAME = split-path -leaf $MyInvocation.MyCommand.Path
$SOURCEROOT = "$SCRIPTDIR\Source"
$SettingsFile = $SCRIPTDIR + "\" + $SettingsName
$LANG = (Get-Culture).Name
$OSV = $Null
$ARCHITECTURE = $env:PROCESSOR_ARCHITECTURE

#Try to Import SMSTSEnv
. Import-SMSTSENV

# Set more vars
$Make = $tsenv.Value("Make")
$Model = $tsenv.Value("Model")
$ModelAlias = $tsenv.Value("ModelAlias")
$MakeAlias = $tsenv.Value("MakeAlias")

#Start Transcript Logging
. Start-Logging

#Output base info
Write-Output ""
Write-Output "$ScriptName - ScriptDir: $ScriptDir"
Write-Output "$ScriptName - SourceRoot: $SOURCEROOT"
Write-Output "$ScriptName - ScriptName: $ScriptName"
Write-Output "$ScriptName - Current Culture: $LANG"
Write-Output "$ScriptName - Integration with MDT(LTI/ZTI): $MDTIntegration"
Write-Output "$ScriptName - Log: $LogFile"
Write-Output "$ScriptName - Model (win32_computersystem): $((Get-WmiObject Win32_ComputerSystem).model)"
Write-Output "$ScriptName - Name (Win32_ComputerSystemProduct): $((Get-WmiObject Win32_ComputerSystemProduct).Name)"
Write-Output "$ScriptName - Version (Win32_ComputerSystemProduct): $((Get-WmiObject Win32_ComputerSystemProduct).Version)"
Write-Output "$ScriptName - Model (from TSENV): $Model"
Write-Output "$ScriptName - ModelAlias (from TSENV): $ModelAlias"

#Check Model
if($((Get-WmiObject Win32_ComputerSystem).model) -eq 'HP EliteBook 8560w'){
    Write-Output "Model is $((Get-WmiObject Win32_ComputerSystem).model)"
    Write-Output "Checking BIOS Version"
    Write-Output "Version is $((Get-WmiObject Win32_Bios).SMBIOSBIOSVersion)"
    if($((Get-WmiObject Win32_Bios).SMBIOSBIOSVersion) -ne '68SVD Ver. F.50'){
        Write-Output "Needs upgrade"
        $Exe = 'hpqflash.exe'
        $Location = "$SCRIPTDIR\Source\HP EliteBook 8560w"
        $Executable = $Location + "\" + $exe
        Set-Location -Path $Location
        Invoke-Exe -Executable "$Executable" -Arguments "/s /p LCadmin1.bin" -Verbose
    }
    else
    {
        Write-Output "No Need to upgrade"
    }
}
if($((Get-WmiObject Win32_ComputerSystem).model) -eq 'HP ProBook 6570b'){
    Write-Output "Model is $((Get-WmiObject Win32_ComputerSystem).model)"
    Write-Output "Checking BIOS Version"
    Write-Output "Version is $((Get-WmiObject Win32_Bios).SMBIOSBIOSVersion)"
    if($((Get-WmiObject Win32_Bios).SMBIOSBIOSVersion) -Like '*ICE*'){
        if($((Get-WmiObject Win32_Bios).SMBIOSBIOSVersion) -ne '68ICE Ver. F.62'){
            Write-Output "Needs upgrade"
            $Exe = 'hpqflash.exe'
            $Location = "$SCRIPTDIR\Source\HP ProBook 6570b"
            $Executable = $Location + "\" + $exe
            Set-Location -Path $Location
            Invoke-Exe -Executable "$Executable" -Arguments "/s /f 68ICE.cab" -Verbose
        }
        else
        {
            Write-Output "No Need to upgrade"
        }
    }
    if($((Get-WmiObject Win32_Bios).SMBIOSBIOSVersion) -Like '*ICF*'){
        if($((Get-WmiObject Win32_Bios).SMBIOSBIOSVersion) -ne '68ICF Ver. F.62'){
            Write-Output "Needs upgrade"
            $Exe = 'hpqflash.exe'
            $Location = "$SCRIPTDIR\Source\HP ProBook 6570b"
            $Executable = $Location + "\" + $exe
            Set-Location -Path $Location
            Invoke-Exe -Executable "$Executable" -Arguments "/s /f 68ICF.cab" -Verbose
        }
        else
        {
            Write-Output "No Need to upgrade"
        }
    }
}
if($ModelAlias -eq 'HP EliteBook 8460p'){
    Write-Output "Model is $((Get-WmiObject Win32_ComputerSystem).model)"
    Write-Output "Checking BIOS Version"
    Write-Output "Version is $((Get-WmiObject Win32_Bios).SMBIOSBIOSVersion)"
    if($((Get-WmiObject Win32_Bios).SMBIOSBIOSVersion) -Like '*SCF*'){
        if($((Get-WmiObject Win32_Bios).SMBIOSBIOSVersion) -ne '68SCF Ver. F.63'){
            Write-Output "Needs upgrade"
            $Exe = 'hpqflash.exe'
            $Location = "$SCRIPTDIR\Source\HP EliteBook 8460p"
            $Executable = $Location + "\" + $exe
            Set-Location -Path $Location
            Invoke-Exe -Executable "$Executable" -Arguments "/s /f 68SCF.CAB" -Verbose
            }
        else
            {
            Write-Output "No Need to upgrade"
        }
    }
    if($((Get-WmiObject Win32_Bios).SMBIOSBIOSVersion) -Like '*SCE*'){
        if($((Get-WmiObject Win32_Bios).SMBIOSBIOSVersion) -ne '68SCE Ver. F.63'){
            Write-Output "Needs upgrade"
            $Exe = 'hpqflash.exe'
            $Location = "$SCRIPTDIR\Source\HP EliteBook 8460p"
            $Executable = $Location + "\" + $exe
            Set-Location -Path $Location
            Invoke-Exe -Executable "$Executable" -Arguments "/s /f 68SCE.CAB" -Verbose
            }
        else
            {
            Write-Output "No Need to upgrade"
        }
    }
}
if($((Get-WmiObject Win32_ComputerSystem).model) -eq 'HP Compaq dc7900 Small Form Factor'){
    Write-Output "Model is $((Get-WmiObject Win32_ComputerSystem).model)"
    Write-Output "Checking BIOS Version"
    Write-Output "Version is $((Get-WmiObject Win32_Bios).SMBIOSBIOSVersion)"
    if($((Get-WmiObject Win32_Bios).SMBIOSBIOSVersion) -ne '786G1 v01.27'){
        Write-Output "Needs upgrade"
        $Exe = 'hpqflash.exe'
        $Location = "$SCRIPTDIR\Source\HP Compaq dc7900 Small Form Factor\HPQFlash"
        $Executable = $Location + "\" + $exe
        $SourceFile = $Location + "\" + "Password01.bin"
        $Destination = $env:TEMP
        $DestinationFile = $Destination + "\" + "Password01.bin"
        Copy-Item -Path $SourceFile -Destination $DestinationFile -Force -Verbose
        Set-Location -Path $Location
        Invoke-Exe -Executable $Executable -Arguments "/s /p $DestinationFile"
    }
    else
    {
        Write-Output "No Need to upgrade"
    }
}

#Stop Logging
. Stop-Logging


/mike

4 Responses to “OSD – BIOS upgrade during OS Deployment in MDT/ConfigMgr (v3)”

  1. Dustin said

    Great work. Only issue I see here is that it still leaves open the issue of an Encrypted system being bricked. I’ve posted my own solution to this which automatically unlocks a drive (BitLocker only but could be extended to other solutions) before upgrading the BIOS. https://deploymentramblings.wordpress.com/2013/05/29/sccm-2012-deploying-dell-bios-updates-using-the-application-model/

  2. Andrew said

    Thank for for this! I have been using version 2 of this script for a long time now and it works great.
    Just out of curiosity. What is new/changed/improved in this version of the script compared to version 2?

  3. Sigurd D H said

    Thanks you for posting this. Really helped with our companies upgrade.
    We did however alter it a bit so that it’s expandable and shrinkable:

    #Start
    #Get vendor
    $Vendor = (get-wmiobject win32_computersystem).manufacturer
    $Bios = (Get-WmiObject Win32_bios).smbiosbiosversion
    if ($Vendor -eq “Dell Inc.”) {
    $Model = (Get-WmiObject Win32_ComputerSystemProduct).Name
    $ModelPath = $PSScriptRoot + “\source\” + $Model
    $ModelCorrect = Test-Path $ModelPath
    }
    elseif ($Vendor -eq “LENOVO”) {
    $Model = (Get-WmiObject Win32_ComputerSystemProduct).Version
    $ModelPath = $PSScriptRoot + “\source\” + $Model
    $ModelCorrect = Test-Path $ModelPath
    }

    if ($ModelCorrect -eq $True) {

    $BiosVer = Get-Content ($ModelPath + “\Version.txt”)
    Write-Output “$ScriptName – Upgrading BIOS version to = $BiosVer”
    $BiosCheck =($BiosVer -eq $Bios)

    if ($BiosCheck -eq $False) {
    if ($MDTIntegration -eq “YES”){
    $tsenv.Value(“NeedReboot”) = “YES”
    $RestartNeeded = 1
    }
    $Exe = ‘update.cmd’
    $Location = $ModelPath
    $Executable = $Location + “\” + $exe
    Set-Location -Path $Location
    Invoke-Exe -Executable “$Executable” -Verbose

    }
    else {
    write-output “This machine does not require a Bios Update”
    }
    }

    This way, if you have a predefined file structure that follows some simple standards, you can just add and remove hardware entities in your folder structure and the script will autodetect the correct BIOS.
    I excluded the unchanged parts of the script, as well as the part were we force every computer which is updated to restart after 3 minutes

    Note: I am really NOT very good at scripting , especially in powershell, so this stuff could probably be done in a much smarter way. Jsut wanted to share our take on it
