ConfigMgr

OSD – Adding Description to the WIM file during Build and Capture

The default capture function in MDT does not add any description. It is not needed, but can be added by modifying ZTIBackup.wsf. In this case I added the Task Sequence Name, but you can add other things as will, like Task Sequence Description or Task Sequence version. I did this at a demo at Microsoft Ignite last week but I did not post it at that time, so here it is.

The Session from Ignite is here if you would like to see it: https://www.youtube.com/watch?v=H9HGSVEaqQk

The how:

Modifying the Script

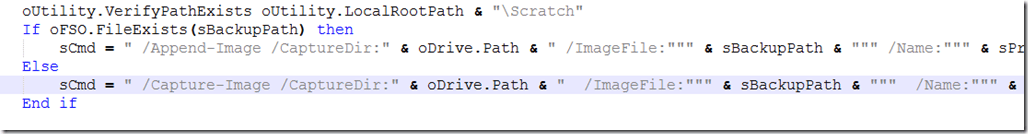

Take a copy of ZTIBackup.wsf, open it in your favorite VBscript editor and look for this section:


At line 436 you will see this:

sCmd = " /Capture-Image /CaptureDir:" & oDrive.Path & "  /ImageFile:""" & sBackupPath & """  /Name:""" & sPrefix & Left(oDrive.Path, 1) & "Drive"" /Compress:MAX /ConfigFile:""" & sWimScriptPath & """ /ScratchDir:""" & oUtility.LocalRootPath & "\Scratch"""

Change that to:

sCmd = " /Capture-Image /Description:""" & oEnvironment.Item("TaskSequenceName") & """ /CaptureDir:" & oDrive.Path & "  /ImageFile:""" & sBackupPath & """  /Name:""" & sPrefix & Left(oDrive.Path, 1) & "Drive"" /Compress:MAX /ConfigFile:""" & sWimScriptPath & """ /ScratchDir:""" & oUtility.LocalRootPath & "\Scratch"""

(The yellow text shows the modification)

The result:

Using Get-WindowsImage will show you that the description is now set to the Task Sequence name:

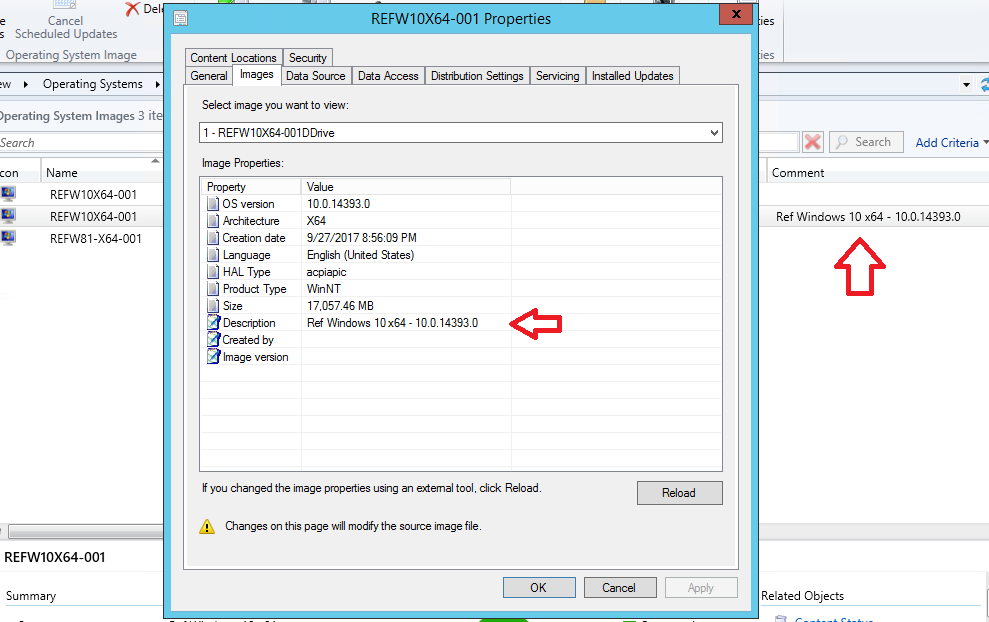

If you import the WIM file into ConfigMgr you will also see the description set as well as the Comment:


/Mike
